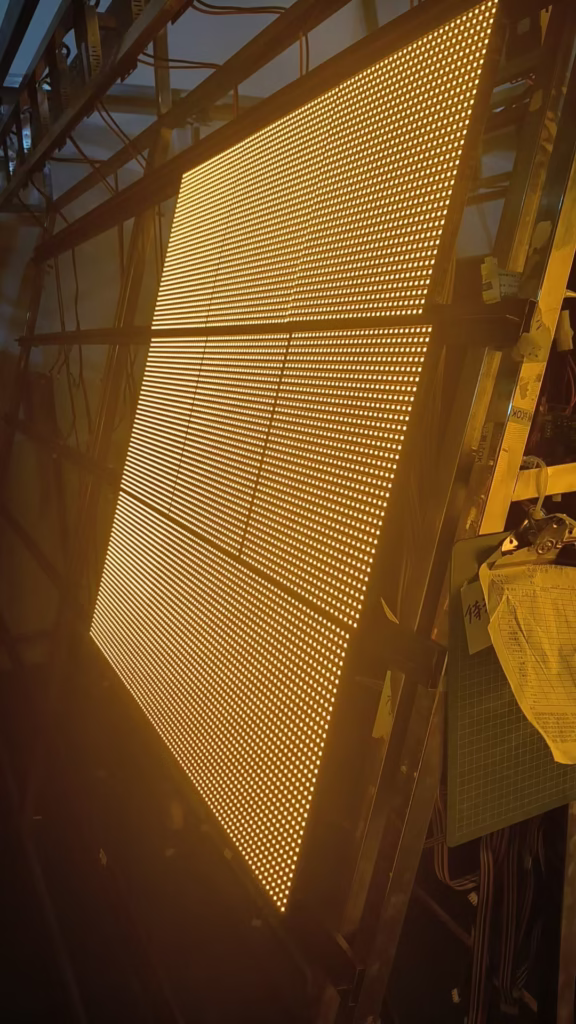

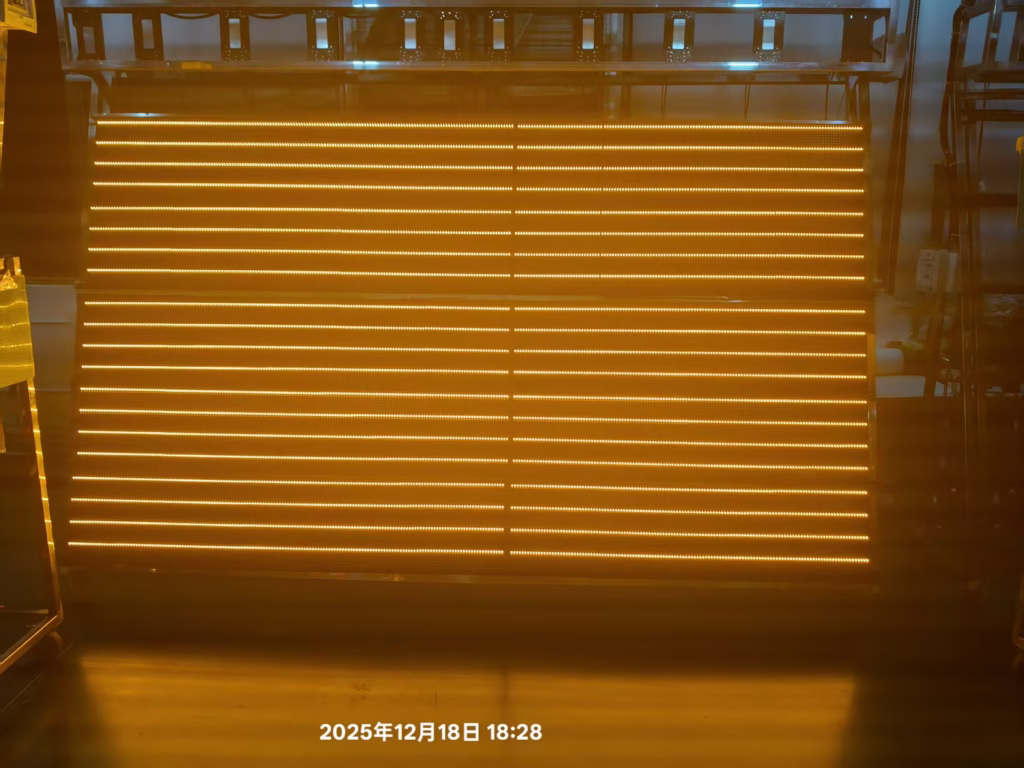

P10 Outdoor SMD Amber High Brightness (9500nits) LED Display | VMS Yellow Color LED Screen
LEDA P10 outdoor SMD amber LED display, also widely known as the yellow LED display is a high-performance single-color outdoor visual solution tailored for traffic guidance, public information release, and outdoor event signage. As a core model of our outdoor single-color display series, the LEDA P10 amber led display features ultra-high brightness, stable performance, wide viewing angle, and full outdoor waterproof and dustproof capabilities. It solves the core pain points of ordinary outdoor screens such as unclear display under strong sunlight, easy damage in harsh environments, and unstable picture output, and it is the most cost-effective dedicated screen for outdoor long-distance viewing scenarios.
10mm pixel pitch for longer viewing distance with good Clarity
Ultra-high brightness with over 9,500Nits for the best viewing experience even in strong light.
Dimensions: 320mm x 320mm
Service: Front or Back
Best for outdoor, 160-degree visibility
Highly stable driver ICs for better color uniformity and vibrant images
Designed with SMD encapsulation, offering excellent full color present
High refresh rate with over 1920hz to 3840Hz to allow flicker-free
IP65 Protection level, dustproof, waterproof, and anti-fog
Anti-collision design PCB boards for high standard of protection level
1. Superior Visual Performance: 9500nits Ultra-High Brightness for All-Day Outdoor Visibility
Brightness is the core indicator that determines the practicality of outdoor LED displays, especially for traffic and public information screens that need to work 24/7. Different from ordinary outdoor yellow LED displays with a brightness of only 5000-8000 nits, our P10 outdoor amber LED display reaches an ultra-high brightness of 9500 nits.
Whether it is direct strong sunlight at noon, bright outdoor ambient light, or hazy sunny weather, the screen can present ultra-clear amber yellow text and graphics without fading, blurring or reflection interference. More importantly, the brightness supports intelligent adjustable according to ambient light. It automatically reduces brightness at night to avoid dazzling pedestrians and drivers, conforms to urban traffic lighting standards, and greatly saves power consumption while ensuring display clarity.
Equipped with a high refresh rate of 1920Hz to 3840Hz, the screen realizes completely flicker-free display. It avoids screen flickering problems that are easy to cause visual fatigue, meets long-term viewing needs of drivers and passers-by, and is also compatible with high-definition shooting and video recording without screen rolling stripes, perfectly adapting to official traffic monitoring and event video recording scenarios.
2. P10 Pixel Pitch: Ideal Specification for Long-Distance Outdoor Viewing
Designed with a standard 10mm pixel pitch, this amber yellow LED screen is professionally optimized for outdoor medium and long-distance viewing scenarios. Compared with small-pitch screens that are costly and unnecessary for long-distance use, the P10 pitch balances clarity and viewing distance perfectly.
With stable pixel density and accurate color restoration, it delivers sharp and uniform display effects within the best viewing range of 10-50 meters. It will not have blurred pixel particles when viewed from a distance, nor redundant fine pixels that cause resource waste. The single module size is 320mm×320mm, with flexible assembly and splicing. It can be freely combined into various customized sizes according to installation sites such as highway gantries, urban road intersections, community outdoor walls, and event venues, fully meeting diverse engineering layout needs.
3. Professional Outdoor Protection & Durable Structural Design
Outdoor display equipment needs to resist harsh environments such as wind, rain, dust, fog and temperature changes all year round. LEDA P10 outdoor SMD amber VMS led display adopts industry-leading outdoor protection standards and structural optimization design, with a full IP65 waterproof and dustproof grade.
The whole machine realizes comprehensive dust-proof, waterproof and anti-fog protection, which can effectively cope with heavy rain, thunderstorm, foggy days and dusty outdoor environments. It can operate stably outdoors all year round without water seepage, dust accumulation and screen failure. The customized thickened high-standard anti-collision PCB board is adopted, which enhances the anti-collision and anti-vibration ability of the equipment. It can resist slight external impact and road vibration during traffic operation, greatly reducing the failure rate of the display screen.
In terms of installation and maintenance, the screen supports front and rear dual maintenance modes. Engineers can choose convenient maintenance methods according to on-site installation conditions (wall-mounted, gantry-mounted, vertical mounted). No complex disassembly is required for daily troubleshooting and maintenance, which greatly saves later maintenance time and labor costs for engineering projects.
4.Premium Core Accessories for Long-Term Stable Operation
The stable and durable operation of the LEDA P10 amber led display stems from strict selection of core accessories and standardized production processes:

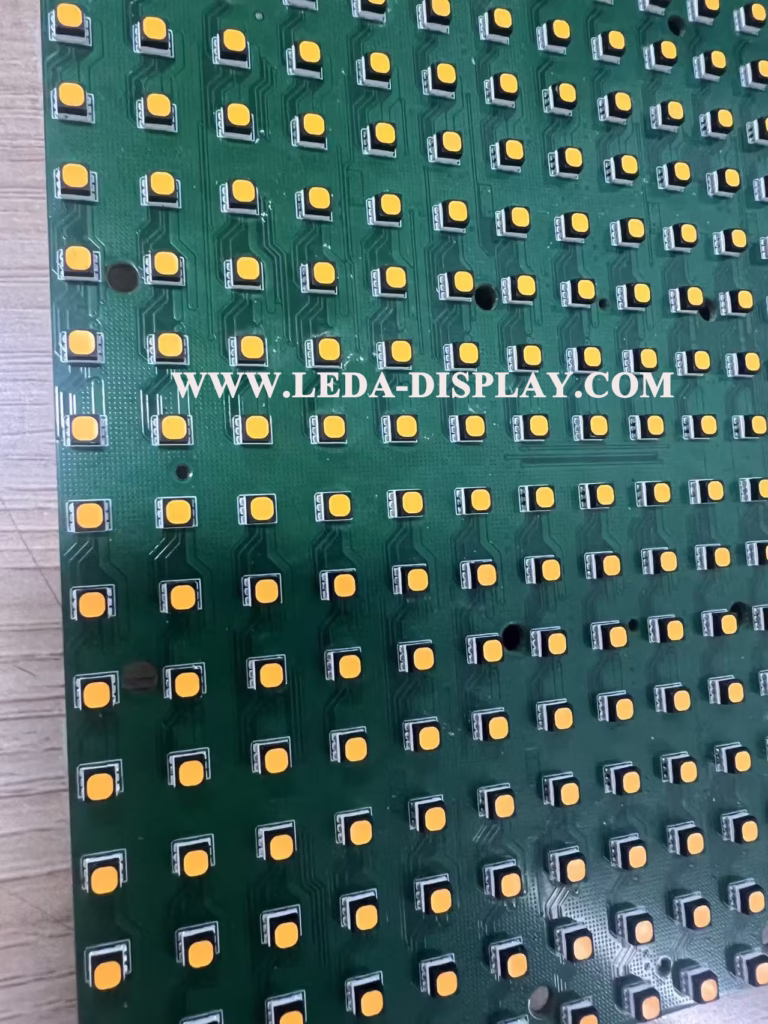

4.1 High-quality large-size LED chips
Equipped with high-grade dedicated amber yellow LED chips, with excellent color consistency and uniform light emission. There is no color difference or dark area on the whole screen, ensuring consistent and eye-catching yellow display effect for a long time.
4.2 First-class MBI brand driver IC
Adopts high-stability MBI driver IC in the industry, which accurately controls pixel output. It ensures high uniformity of screen color, bright and saturated picture, effectively avoids dead pixels, flash screens and uneven brightness, and maintains stable high-quality display for years.
4.3 High-standard customized PCB & national standard cables
Thickened high-quality PCB materials improve heat dissipation performance and high-temperature resistance, adapting to high-temperature outdoor environments in summer. All internal cables comply with national standard specifications, with strong tensile resistance and aging resistance, avoiding line failures caused by long-term outdoor wind and sun exposure.
5. Ultra-Wide Viewing Angle & Wide Application Scenarios
This amber LED display supports a 160° ultra-wide horizontal and vertical viewing angle, almost no viewing blind spots. Whether viewed from the front, left or right side, the picture is clear and consistent, maximizing outdoor visual coverage. It is widely recognized as the preferred equipment for outdoor public information release, and is highly compatible with the following mainstream scenarios:
5.1 Traffic VMS Guidance Scenarios (Core Application)
As a professional traffic variable message sign screen, it is installed on highway gantries, tunnel entrances and exits, urban main road intersections, and ring roads. It is used to release real-time traffic information: speed limit reminders, road closure warnings, traffic control notices, bad weather early warnings (rain, fog, strong wind), tidal lane prompts and road construction reminders. The high-visibility amber yellow color is more eye-catching in complex traffic environments, helping drivers quickly capture road information and improve road traffic safety and passage efficiency.
5.2 Urban Public & Community Information Release
Suitable for government squares, community outdoor public areas, parks and stations, used to release public notices, weather forecasts, safety publicity knowledge, time and temperature information, realizing intelligent urban public information display.
5.3 Outdoor Events & Temporary Display
Widely used for outdoor sports meetings, cultural festivals, outdoor exhibitions and other activities, as temporary information display screens for event process reminders, guest information and safety tips, with flexible installation and stable display.
